Full Automatic High Speed PVC Cooling and Heating Plastic Mixer with High Technology
SRL500/1000L Plastic PVC mixer machine with good quality
1. It is used for the process of mixing, drying in the industries of plastic, rubber, chemical and the place of lab as well.
2. Its lid adopt double sealed.
3. With the heating ways of self-friction.
4. Using heat conduction oil and insulation cotton to keep temperature in hot mixer.
5. With discharging ways of temperature automatic control and manual control.
6. Paddles are entirely made of stainless steel and through dynamic and static balance test.
7. The electric control system adopts the components of famous brand.
8. It can also use frequency inverter as per your request.
| item | name | Specification |
| thermal mixer | cold mixer |
| 1 | The total volume | 200L | 500L |
| 2 | Effective volume | 150L | 375L |
| 3 | Impeller number | 3 | 1 |
| 4 | Impeller speed | 475/980 r/min | 80 r/min |
| 5 | Heating methods | Since the friction | |
| 6 | Cooling methods | | Cooling water |
| 7 | Cooling water | | > 0.03Mpa |
| 8 | Cooling temperature | | 40-60 ℃ |
| 9 | Cooling water temperature | | 0-15 ℃ |
| 10 | Mixing time | 8-12 min/pot | 10-12 min/pot |
| 11 | Power | 30/42kw | 7.5kw |
| 12 | Rotation rate | 730/1470 r/min | 1440 r/min |
| 13 | Barrel body, bottom of the pot material | stainless steel |
| 14 | Pot cover, three links | Aluminum |
| 15 | Blades | stainless steel precision casting, and by the static and dynamic balance test |
| 16 | Temperature Table | Japan OMRON |
| 17 | Electrical components | Delixi |
| 18 | Total weight | 3000kg |
| 19 | Dimension | 2680X2150X2270mm |

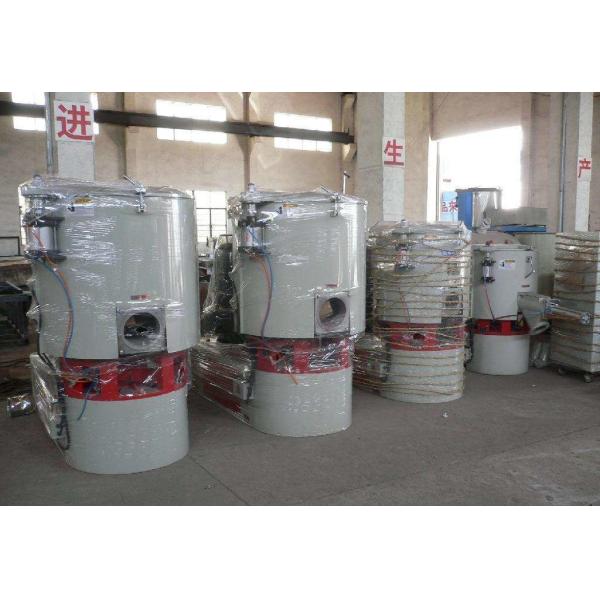

Main parts of PVC mixer machine are covered by plastic film, then be placed in wooden case and pallets, next be fixed in containers.
1) We recommend of machine and auxiliary equipments and relevant budgeting, human resources allocation and budgeting.
2) We would like to answer any inquiry within 48 hours and it will be solved as soon as possible.
3) The buyer can send the worker to our company for training.
4) The Seller supplies the complete technical support documents and the relative drawings of the electric components written in Chinese and English.
5) Our engineer can be to the Buyer’s company for installation and testing the machines.
